Windows Task Manager

The Windows Task Manager is critical software for understanding what is running on your computer.

Learning Objectives

You should be able to:

• Describe the Task Manager's use cases
• Launch the task manager
• Select Task Manager columns
• Sort processes

Video Walkthrough

Use this video to follow along with the steps in this lab.

Why Task Manager Matters

The Task Manager has existed in Windows since its earliest days and will exist in some form forever. The Task Manager is often used to stop stuck applications. Applications might have bugs that occasionally make them eat up all of your CPU, memory, or disk processing capability, and your system will be unresponsive until those applications are forcefully stopped. The Task Manager can be used to hunt down those applications and kill them.

The Task Manager can also be used to look for malware or potentially unwanted programs (PUPs). You might see a program named Steal_My_Info_and_Show_Me_Ads.exe in the list of running applications, and that could be a sign that some software needs to be uninstalled.

Scenario 1: Slow Website

Alice is an information technology administrator. She has received reports that an internal website has been running slow. She logs into the server and notices that the web server software is using 95% of the available memory. The high memory usage is a sign that the server needs its memory increased, or the website has a memory leak. More research would need to be done, but checking the Task Manager is the first step in identifying the problem.

Scenario 2: Odd Popups

Bob calls the help desk. Every few minutes, he is getting popups on his computer trying to sell him products. His computer never used to do this. The help desk connects to his computer and checks Task Manager. They see a program published by Sketchy Ads, Inc running on his computer. The help desk terminates the program and uninstalls it.

Using Task Manager

• There are several ways to launch the Task Manager.
• Right-click on the start menu and select Task Manager.

• Find the Task Manager by searching the start menu.

• If your system is stuck, you can press control+alt+del. The Task Manager will be one of the options presented.
• Launch the Task Manager using one of the methods described previously.
• By default, Task Manager shows very little information. Your running applications will be displayed. I call this the useless mode because it hides virtually all important information.

• Click the More Details link. A whole new world of information will now be available.

• Note several changes:
  • In addition to the running applications, background processes are listed. These background processes can cause lots of problems and should occasionally be monitored.
  • There are several tabs--Processes, Performance, Users, Details, and Services. Desktop versions also include App history and Startup.

Processes Tab

The Processes tab displays the information about running processes. For example, you might be using 50% of your computer's total memory. You can also see how much each process contributes to the overall usage. Task Manager itself likely uses only a very small portion of your memory.

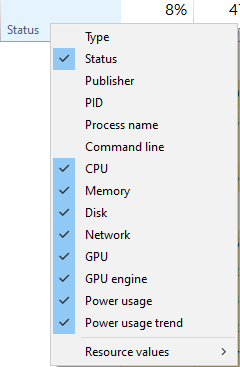

• Right-click on the header to see the columns that can be shown or hidden.

• Show the PID (Process Identifier) column. The PID column is sometimes useful for linking information with other tools.
• Hide the Status column.

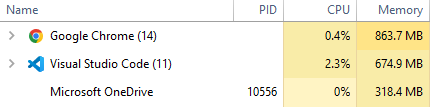

• Click on the Memory column to sort the values.

• On my computer, Chrome, Visual Studio Code, and OneDrive were using the most memory. Sometimes, a program will have a memory leak and continue to use more and more memory until the computer runs out of memory. Sorting Task Manager by memory can identify when a program may have a memory leak.
• Sort by disk. Your computer might run slowly because a program is dominating the hard drive. Anti-virus programs are notorious for slowing down systems, often because they cause so much disk activity. Software updates also cause a lot of disk activity. Those processes should probably not be stopped.
• Sort by CPU. The sorting will likely jump around a lot. Many programs sit idle, then periodically need to process data causing the CPU to temporarily spike.
• Review the process names. Is there anything suspicious?
• Show the Publisher column. Some programs are digitally signed by their authors. Programs signed by Microsoft are probably trustworthy. Some programs may not have a publisher and still be trustworthy. Sorting by publisher is one way to quickly scan running processes for something that looks fishy.

Performance

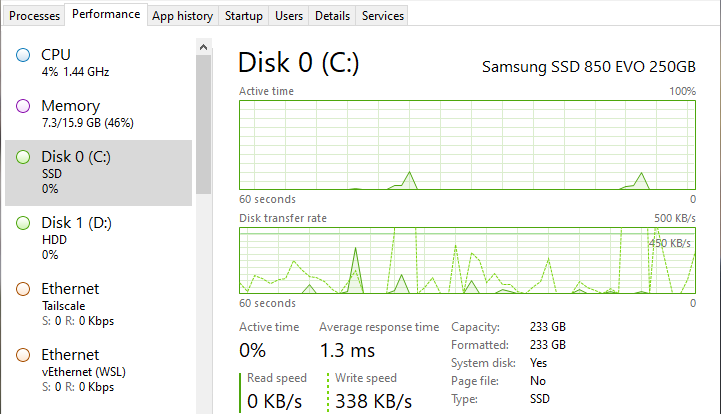

The Performance tab tracks hardware performance over time. This tab can help you know if your CPU, memory, disk, or network is being used heavily. The following screenshot shows a system that is not under very much stress. CPU and disk utilization are low. Nearly half of the memory is used, but there are still 8 gigabytes of memory free.

The screenshot also shows that the system has two disks. If one disk is heavily utilized and the other disk has little activity, it could indicate the need for spreading the load over the two disks.

App History

The App History tab is not available on Windows Server. The App History tab records application metrics for a month. By default, the App History only shows applications installed through the Microsoft Store (or applications that could be installed through the Microsoft Store that come pre-installed with Windows). I call this "Stupid Mode" because, despite Microsoft's best efforts, a lot of software is not installed through the Microsoft Store.

To show all applications, go to the Options menu and select Show history for all processes.

Now, the history will be more accurate.

Startup Tab

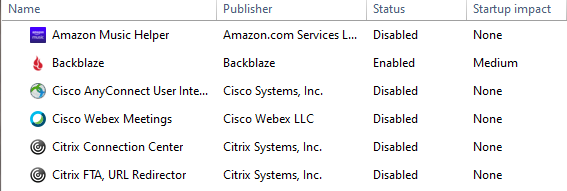

The Startup tab is not available in Windows Server. In desktop version, the Startup tab shows the application that launch automatically every time you reboot your computer. It is possible to disable applications you do not want. This screenshot shows that the Amazon Music Helper is disabled. That's because I disabled it. I rarely used it, so I did not want it running every time my computer started.

It is important to be careful when deciding which applications to disable. You probably want services that synchronize and backup files to run automatically, even though they impose a fairly large performance hit when they start.

Note that there are other ways that programs can launch automatically. An application might not be listed in the startup tab, but still be launched automatically.

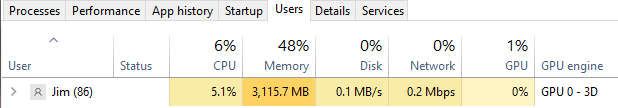

Users Tab

The Users tab likely won't have interesting information on your compter. There is probably only one user. On a server, you might have several administrators logged into the same computer, in which case it could be important to distinguish what resources each user is using.

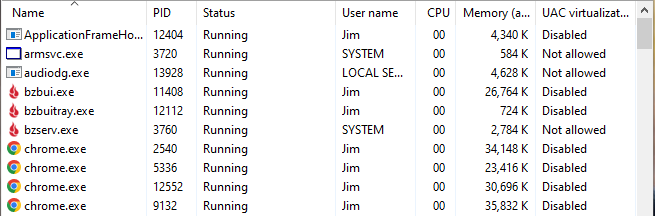

Details Tab

The Details tab is similar to the Processes tab. But the Details tab will not try to group related processes, and more columns are available to show.

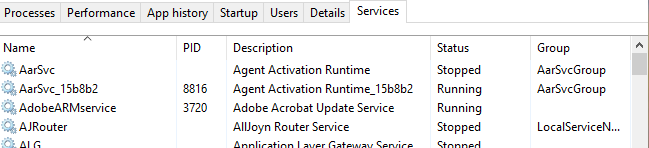

Services Tab

The Services tab displays background services. Think of services as applications that have no graphical user interface. If you are not sure what a service does, it's best not to turn it off. Sometimes the Services tab is useful to investigate because a service might be running that you did not expect to be running. Services can be sorted by column, such as Status (stopped and running).

Challenge

• Which application is using the most memory right now? (Process tab)
• What is your disk's current read and write speed? (Performance tab)
• How much data has your web browser used over the past month? (App History tab)
• Look at the list of programs that start automatically. Disable applications you know you do not want to start. (Startup tab)
• How many users are logged into your computer? (Users tab)
• How many browser processes are running? (Details tab)
• How many services are running? (Services tab)

Reflection

• How well do you know the applications and services that are running on your computer?
• How would you identify malware using the Task Manager?
• Does Windows give you sufficient control to manage the software that runs on your computer?

Key Terms

• Windows Task Manager: A system monitor and performance tool included with Microsoft Windows operating systems. It provides information about running applications, processes, and services, as well as system performance metrics.
• User Applications: Applications that users start. They typically have a graphical or command-line interface.
• Processes: Instances of running programs or system tasks. In Windows, the Processes tab in Task Manager displays detailed information about each process, including CPU and memory usage.
• Services: Background tasks that run without user interaction to support various system functions and applications. In Windows, the Services tab in Task Manager shows the status of these services and allows users to start or stop them.
• PID (Process Identifier): A unique number assigned by the operating system to each running process. It is used to manage and track processes.
