Addressing: MAC, IPv4 And IPv6

Media Access Control (MAC) addresses are baked into the hardware. Every unique network card has a unique MAC address. But internet protocol (IP) addresses are assigned as part of joining a network. The internet protocol (IP) with IP addresses has been around since 1982. The internet protocol was designed very well by very small people. More than forty years after its implementation, it remains the dominant protocol to move packets around the internet. This original protocol would be named IPv4 to distinguish it from IPv6. The IPv6 specification was finalized in 1998, but IPv6 adoption has been slow.

Learning Objectives

You should be able to:

  • Differentiate IPv4 and IPv6 addresses
  • Set computer IP addresses in Packet Tracer
  • Cable computers in Packet Tracer
  • Perform connectivity testing using ping

Video Walkthrough

Use this video to follow along with the steps in this lab.

Who Cares About Network Addressing?

  • Network administrators need to plan networks and ensure that devices can communicate with each other.
  • Security professionals can analyze network traffic to reconstruct events. For example, a security professional knows that Bob had a certain IP address at a certain time and determine what Bob was doing on the network.
  • Individuals should be aware that their devices have unique identifiers that can be used to track their activities on the internet.

MAC Addresses

MAC addresses are also known as hardware addresses or physical addresses. Manufacturers of Wi-Fi cards, ethernet cards, Bluetooth adapters, and other network cards make sure that every device that leaves the factory has a unique MAC address.

All MAC addresses are 48 bits. MAC addresses are typically represented by 12 hexadecimal characters. Each hexadecimal character represents 4 bits of data, ergo 4*12=48 bits. Here is a sample MAC address: 00-15-5D-E8-68-BC.

MAC addresses are used on your local area network (LAN). On a typical home network, the local area network would be made up of a wireless router, laptop computers, smartphones, tablets, networked printers, etc. Your wireless router learns the MAC addresses of all of the devices connecting to it and makes sure messages get sent to the intended recipient.

IPv4 and IPv6 Addressing

IP addresses are assigned to devices. Those IP addresses might periodically change. The internet protocol was designed so that packets could be routed across large networks.

IPv4 addresses are composed of 4 numbers separated by decimals. Each of the numbers can be between 0 and 255. For example, 192.168.1.23 is a valid IPv4 address. IPv4 addresses are 32 bits (4 numbers, 8 bits each, an 8-bit number can be as high as 255). One problem with IPv4 addresses is that there aren't enough of them. When IPv4 was being designed in the early 1980s, few people predicted how the internet would expand. IPv4 only contains approximately 4.3 billion IP addresses. That may have seemed like a lot of IP addresses at the time, but 40 years later the world's population has grown and many people have more than one device connected to the internet. Technology had to be created to allow people to share IP addresses.

In the 1990s, experts realized that the internet was catching on and that there would be a time when we could run out of IPv4 addresses. IPv6 was created to improve upon the IPv4 protocol and to vastly expand the IP address space. IPv6 addresses are 128 bits. 2^128=340,282,366,920,938,463,463,374,607,431,768,211,456. People aren't expecting to run out of IPv6 addresses any time soon. There are enough IPv6 addresses to give every person on earth billions and billions of IP addresses. IPv6 addresses might look like fe80::c41e:96e1:82af:509d.

  • IPv4: 4,294,967,296
  • IPv6: 340,282,366,920,938,463,463,374,607,431,768,211,456

Technically, IPv6 is better than IPv4 in most ways. But IPv6 adoption has been slow. One problem is that IPv6 is not backward compatible with IPv4. Translation services have to ensure that network traffic will work on both. Cell phone networks lead IPv6 adoption, though IPv6 is available from most home internet service providers.

Set Computer IP Addresses in Packet Tracer

In this exercise, you will set up a small network. You will look at the hardware addresses on computers and set their IP addresses.

  • Click on the [End Devices] category.
  • The [End Devices] subcategory will already be selected, but click it if you're feeling adventurous.
  • In the hardware section, the PC will be available. Drag a PC into your network. If it's the first PC, it will be given the name PC0.

Add a PC

  • Add another PC.
  • Click on the PC0 label to rename the PC. Name it Alice.
  • Click on the PC1 label to rename the PC. Name it Bob.
  • Your network should look like the following.

Alice and Bob PCs

  • Click the lightning bolt icon to find the network cables.
  • Click the dashed line that represents an ethernet crossover cable. Ethernet crossover cables are used for connecting two devices directly (rather than connecting both to a switch).

Select the Crossover Cable (Dashed Line)

  • Next, click on the Alice PC.
  • You will be prompted to choose where the cable should be connected. Choose the FastEthernet0 interface.

Connect to FastEthernet0

  • Click on the Bob PC and choose the FastEthernet0 connection.
  • Alice and Bob should now be connected with an Ethernet cable.

Alice and Bob Connected

  • Next, configure the IP address for Alice and Bob. You will use static IP addresses--meaning that they will not change until you change them. This is in contrast to using the dynamic host configuration protocol (DHCP) that most networks use whereby computers are assigned IP addresses automatically.
  • Click on the Alice PC.
  • Open the Config tab.
  • Click on the FastEthernet0 interface.
  • Notice the MAC address. This has been set automatically. You could override it with a new value (i.e., spoof it), but there is no need for this exercise.
  • Set the IPv4 Address to 192.168.1.25.
  • Set the Subnet Mask to 255.255.255.0.

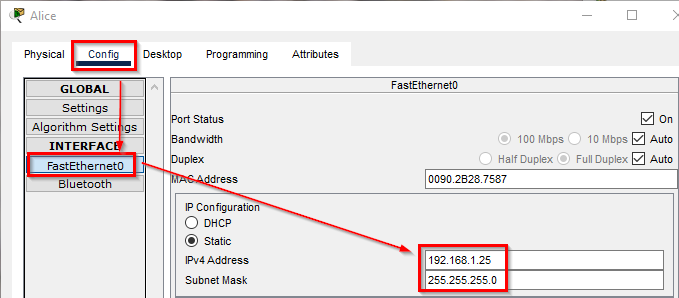

Set the Alice PC IP Address and Subnet Mask

  • Close the Alice PC window.
  • Click on the Bob PC.
  • Open the Config tab.
  • Click on the FastEthernet0 interface.
  • Notice that Bob's PC has a different MAC address.
  • Set the IPv4 Address to 192.168.1.50.
  • Set the Subnet Mask to 255.255.255.0.

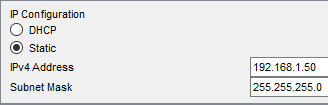

Set the Bob PC IP Address and Subnet Mask

  • Notice that Alice and Bob are using the same subnet mask. The subnet mask is used to tell their computer that Alice and Bob are on the same local network.

Verify Connectivity

  • On the Bob PC, click the Desktop tab.
  • The Desktop tab very roughly simulates the desktop interface that a user would see when using a computer.
  • Click on the Command Prompt program.

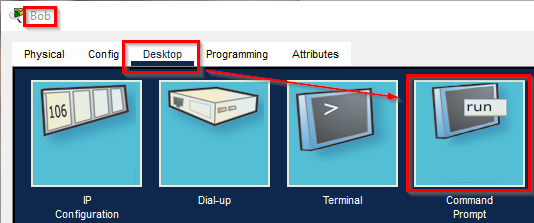

Launch the Command Prompt on Bob

  • In the command prompt, run ipconfig /all to see Bob's IP address settings.

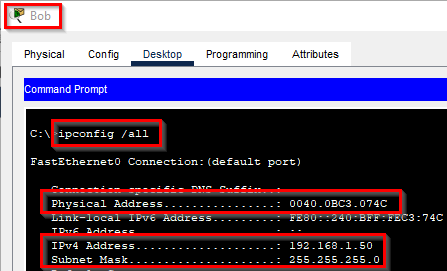

ipconfig /all on Bob

  • Notice that in this output, the MAC address is called the "Physical Address."
  • Verify connectivity with Alice using the ping command. Remember that Alice's IP address is 192.168.1.25.
ping 192.168.1.25
  • The ping should be successful. You should see four replies from 192.168.1.25.

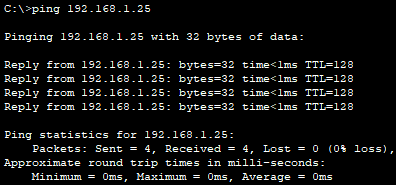

Successful Ping

IPv6 Connectivity Test

IPv4 worked fine. But let's test the network with IPv6.

  • Click on the Alice PC.
  • Open the Config tab.
  • Click on the FastEthernet0 tab.
  • Delete the IPv4 Address and Subnet Mask.
  • For the IPv6 address, enter 2001:db8:acad:1::25.
  • For the / prefix, enter 64.

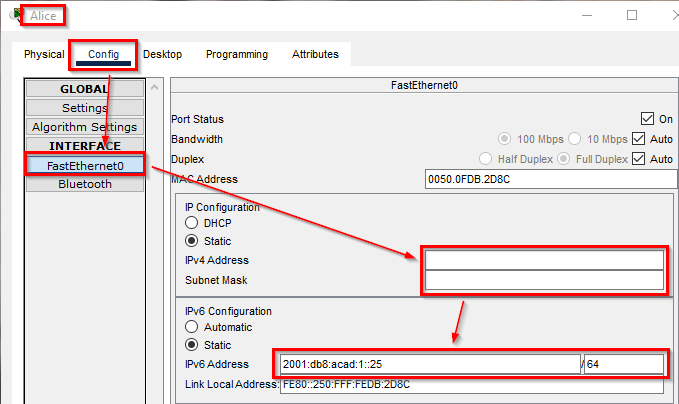

Alice's IPv6 Settings

  • Click on the Bob PC.
  • Open the Config tab.
  • Click on the FastEthernet0 tab.
  • Delete the IPv4 Address and Subnet Mask.
  • For the IPv6 address, enter 2001:db8:acad:1::50.
  • For the / prefix, enter 64.

Bob's IPv6 Settings

  • On Bob's PC, open the Desktop tab.
  • Launch the Command Prompt again.
  • Modify the previous ping command to use Alice's IPv6 address.
ping 2001:db8:acad:1::25
  • You should see several successful replies from Alice's IPv6 address.

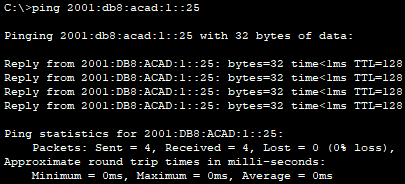

Successful IPv6 Connectivity Test

Challenges (Optional)

If you finished quickly or found this too easy, try the following.

  • Create a new PC labeled with your first name. Create another PC labeled with your last name. Connect them using a copper crossover cable. Create IPv4 addresses using the 10.0.0.0 network with 255.255.0.0 subnet masks. Ensure that the PCs can ping each other.
  • Create a new set of PCs. See how creative you can be spelling words in IPv6 addresses. Because they use hexadecimal, you can spell words like cafe. Use AI, search the internet on articles describing IPv6 addresses, or use any other resource to help you find valid, creative IPv6 addresses

Self-Test Questions

Reflection

  • Has IPv6 been a failure?
  • How many possible MAC addresses are there? Will we run out of MAC addresses?
  • Was it any easier or more difficult to work with IPv4 or IPv6 in this exercise?
  • If the network administrators were recording traffic, they would be able to see that Bob was pinging Alice. If this were a company network, should Alice and Bob expect more privacy?

Key Terms

  • Internet Protocol: A set of rules governing the format of data sent over the internet or other networks. It is responsible for addressing and routing packets of data so they can travel across networks and arrive at the correct destination. The most commonly used versions are IPv4 and IPv6.
  • MAC Address: A unique identifier assigned to a network interface card (NIC) for communications at the data link layer of a network segment. MAC addresses are used within a local network to identify devices and facilitate communication between them. They are typically represented as six pairs of hexadecimal digits. They are also known as hardware addresses or physical addresses.
  • IPv4 Address: A 32-bit numerical address used to identify devices on a network. It is typically represented in dotted decimal format (e.g., 192.168.1.1). IPv4 addresses are divided into network and host portions, allowing for hierarchical addressing and routing.
  • Subnet Mask: A 32-bit number used in IPv4 networking to divide an IP address into network and host portions. It helps determine which part of an IP address identifies the network and which part identifies the specific device (host) within that network. Subnet masks are typically represented in dotted decimal format (e.g., 255.255.255.0).
  • IPv6 Address: A 128-bit numerical address used to identify devices on a network, designed to replace IPv4 due to the exhaustion of available IPv4 addresses. IPv6 addresses are represented in hexadecimal format, divided by colons (e.g., 2001:0db8:85a3:0000:0000:8a2e:0370:7334). IPv6 provides a vastly larger address space and improved routing efficiency.
